Tauro 83E M2 - M10 thread tapping unit
The Tauro 83E thread cutting unit enables the automatic production of medium thread sizes up to M10. Its robust design and easy integration into production cells make it the ideal choice for high volumes.
Discover other models
Technical data
| Thread capacity thread cutting (AlMg4.5Mn / 3.3547) |
M2 – M10; blind hole 2.0 x D |
| Thread capacity thread cutting (X6CrNiMoTi17–12–2 / 1.4571 / V4A) |
M2 – M8; blind hole 1.5 x D |
| Torque range adjustable | 0.30 – 8.30 Nm max. 2000 rpm from 6.80 Nm |
| Speed range adjustable | 50 – 2400 rpm |
| Spindle feed system | pneumatic with monitoring |
| Spindle / tool holder | quick change holder Size 1 |

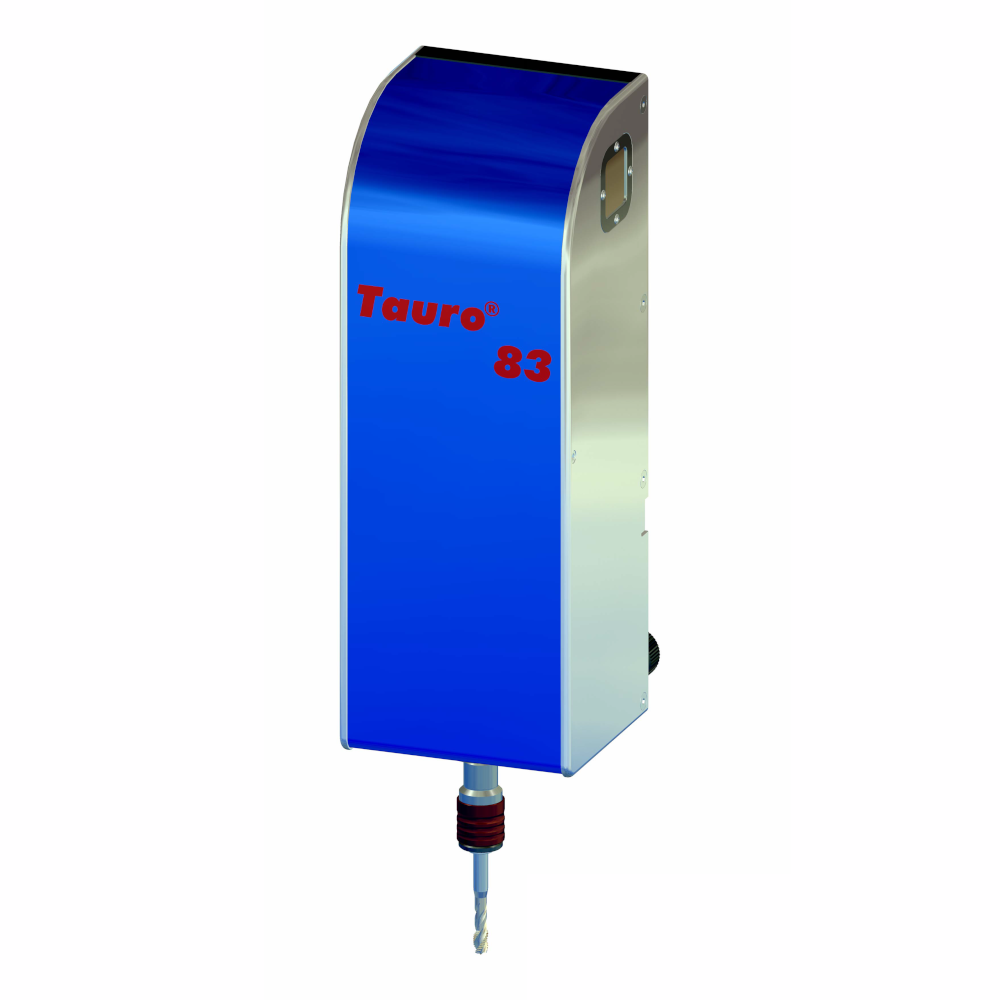

| Dimensions / Weight drive unit | 164 x 195 x 517 mm WxDxH / 13.9 kg |

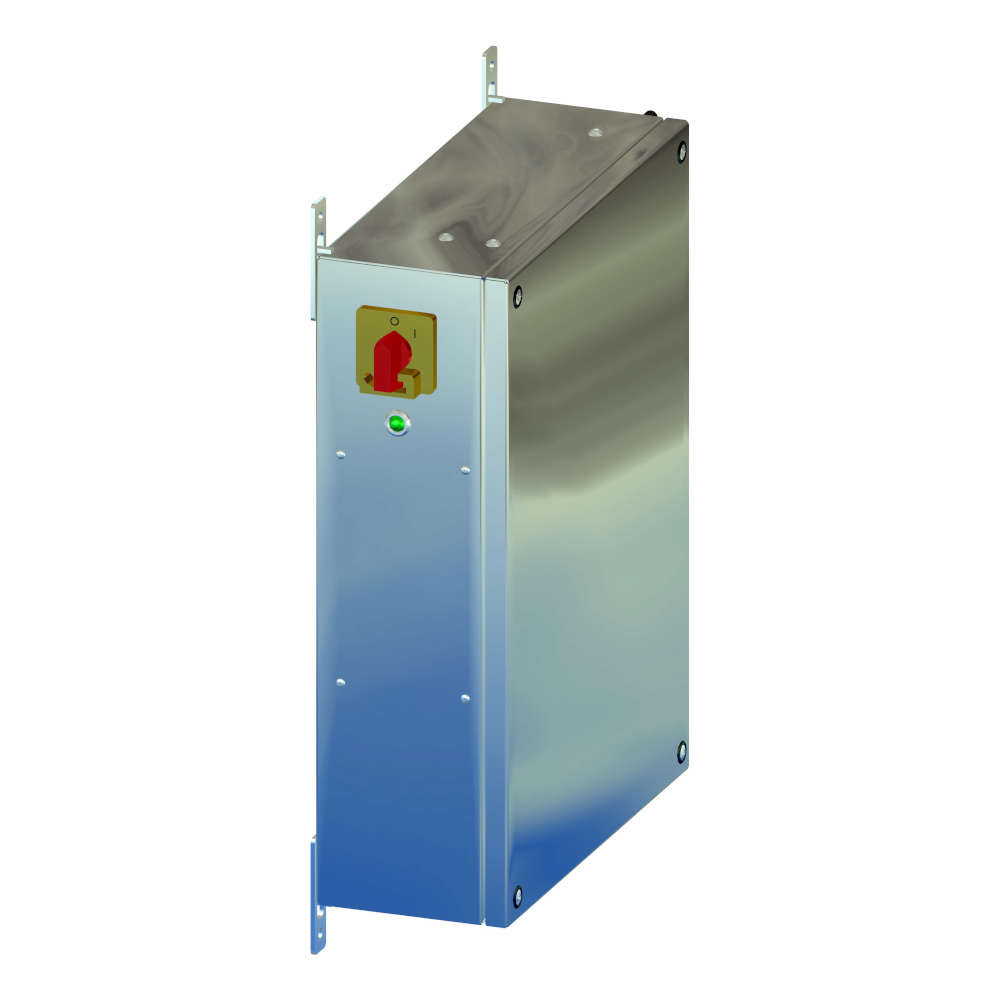

| Dimensions / Weight control unit | 400 x 300 x 120 mm WxDxH / 8.2 kg |
| Dimensions / Weight operating panel | 166 x 43 x 124 mm WxDxH / 1 kg |
| Electric supply / Power input | 230 V~ / 615 W |
| Power input non-operated | < 40 W |
| Cable length between the modules | 2 m (special line up to 12 m) |
| Usage situation | vertical (accessories: horizontal) |
| Spindle travel / thread depth | 90 / 80 mm |
| Depth accuracy | 0.1 mm |
| Digital inputs | 3 (24 V) |
| Digital outputs | 10 (24 V / 3.6 W) short-circuit proof |
| Connector for inputs and outputs | Included in delivery |
| Ethernet interface | Included in delivery |
